Festo
187830

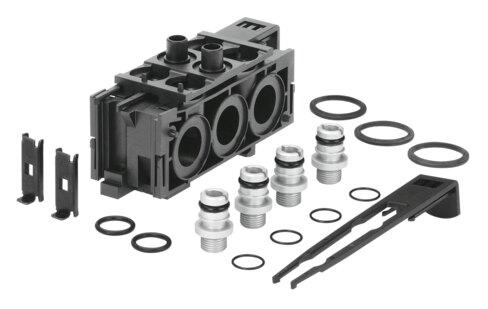

Manifold block CPE14-PRSEO-2
The Festo 187830 is an industrial component featuring a PA-reinforced housing with a product weight of 85 g and a corrosion resistance class of CRC 2 for moderate corrosion stress. It accommodates a maximum of two valve positions and utilizes compressed air as an operating medium according to ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and required for continued operation. Sub-base mounting is achieved via a through-hole or DIN rail, connecting through G3/8 pneumatic connections 1 while maintaining RoHS compliance and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 187830
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 187830.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 2
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 85 g
- Sub-base mounting type
- With through-hole | With DIN rail
- Pneumatic connection 1
- G3/8
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
