Name: Festo 187831 Manifold block CPE18-PRSGO-2
Brand: Festo

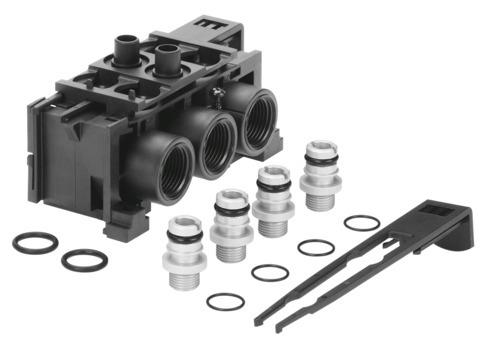

Manifold block CPE18-PRSGO-2

The Festo 187831 is an industrial component designed for a maximum of 2 valve positions, featuring a PA-reinforced housing with a product weight of 170 g and CRC 2 moderate corrosion stress resistance. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure range of -0.09 MPa to 1 MPa, a burst pressure of 3 MPa (30 bar / 435 psi), and permits oil lubrication. Sub-base mounting is achieved via through-hole or DIN rail alongside a G1/2 pneumatic connection 1 and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 187831
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 187831.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Max. no. of valve positions: 2
Burst pressure: 3 MPa | 30 bar | 435 psi
Operating pressure: -0.09 MPa...1 MPa
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 170 g
Sub-base mounting type: With through-hole | With DIN rail
Pneumatic connection 1: G1/2
Note on materials: RoHS compliant
Housing material: PA-reinforced

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 187831. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
