Festo
187849

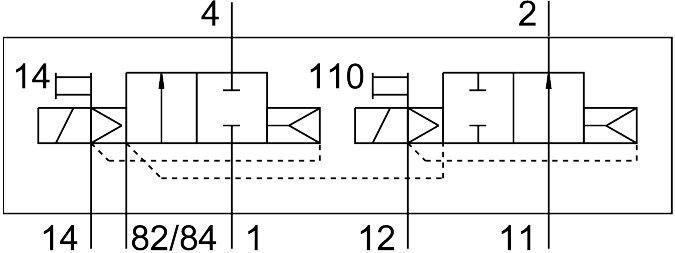

Air solenoid valve CPV18-M1H-2OLS-2GLS-1/4
The Festo 187849 is an 18 mm electrical piston gate valve featuring a 2x2/2, open/closed, monostable valve function with a normal nominal flow rate of 1600 l/min and a G1/4 pneumatic working port. Designed with a soft sealing principle, a nominal width of 8 mm, and an IP65 degree of protection, this piloted component operates on 24V DC within a pressure range of -0.09 MPa to 1 MPa. It incorporates both detenting and non-detenting manual overrides, external or internal pilot air supply ports, a pneumatic spring reset method, and C-Tick certification for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 187849
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 187849.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- C-Tick
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.41
- C value
- 6.3 l/sbar
- Switching time off
- 20 ms
- On switching time
- 14 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1.5 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 187849. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
