Name: Festo 18789 Cable socket ASI-SD-PG-M12
Brand: Festo

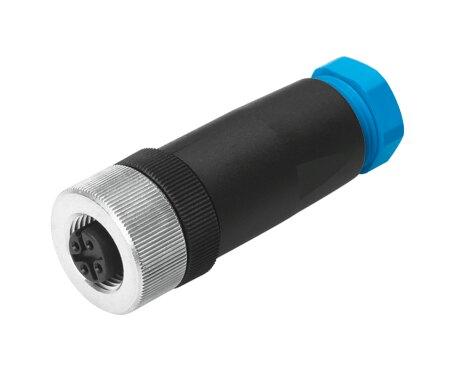

Cable socket ASI-SD-PG-M12

The Festo part number 18789 is an industrial component featuring a straight socket with a 4-pin electrical connection, screw terminal, and Pg9 cable fitting designed for a connection cross section of 0.75 mm². Constructed with a black polyamide housing, nickel-plated union nut, and bronze pin contacts, this IP65 and IP67 rated assembly operates within an ambient temperature range of -40 °C to 85 °C at an AC operating voltage up to 125 V and a 3 A current rating. It supports mounting with a union nut in any mounting position and complies with RoHS and VDMA24364-B2-L LABS conformity standards with a product weight of 27.6 g. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 18789
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 18789.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: With union nut
Mounting position: Any
Product weight: 27.6 g
Electrical connection: 4-pin | Straight socket | Screw terminal
Operating voltage range AC: 125 V
Current rating: 3 A
Cable tting: Pg9
Connection cross section: 0.75 mm²
Degree of protection: IP65 | IP67
Ambient temperature: -40 °C...85 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Housing material: PA
Housing colour: Black
Material of union nut: Nickel-plated
Material of pin contacts: Bronze

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 18789. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
