Reference imageConfirm configuration by manufacturer part number.
Festo
18797

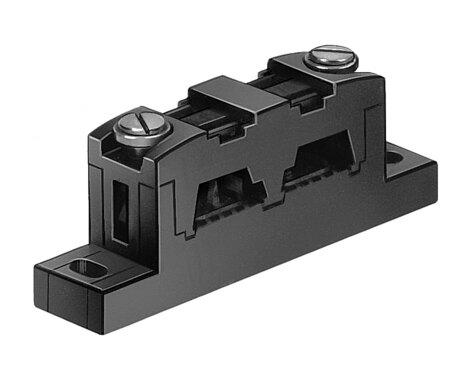

Cable distributor ASI-KVT-FK-S
The Festo part number 18797 is an industrial component featuring a polyamide housing with bronze pin contacts and a product weight of 7.2 g. It supports a DC operating voltage range of 75 V, an AC operating voltage range of 60 V, a current rating of 3 A, and a connection cross section of 1.5 mm². Designed for mounting with a through-hole in any mounting position, this unit achieves an IP65 degree of protection, conforms to VDMA24364-B2-L LABS (PWIS), and operates in ambient temperatures from -5 °C to 50 °C with flexible cable installation alongside storage temperatures between -30 °C and 85 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 18797
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 18797.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- With through-hole
- Mounting position
- Any
- Product weight
- 7.2 g
- DC operating voltage range
- 75 V
- Operating voltage range AC
- 60 V
- Current rating
- 3 A
- Connection cross section
- 1.5 mm²
- Degree of protection
- IP65
- Ambient temperature with exible cable installation
- -5 °C...50 °C
- Storage temperature
- -30 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA
- Material of pin contacts
- Bronze
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 18797. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
