188024

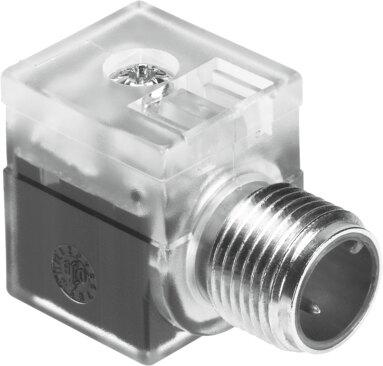

Name: Festo 188024 Plug socket MSSD-EB-M12-MONO
Brand: Festo

Plug socket MSSD-EB-M12-MONO

The Festo 188024 is an industrial component designed for mounting on air solenoid valves via an M2.5 central screw, featuring an LED switching position indication and a transparent PA housing with HNBR and NBR seals. It operates within a 12 V to 24 V DC and AC range, supports a 24 V DC nominal operating voltage with a 0.12 A current rating, and utilizes an EN 175301-803 Form C socket alongside an M12x1 2-pin A-coded straight plug. Built to IP65 protection standards with a -10 °C to 50 °C ambient temperature range, it adheres to EN 175301-803, EN 61076-2-101, and EN 61984 norms with VDMA24364-B2-L LABS conformity and a CRC 2 moderate corrosion resistance class. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 188024
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 188024.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 175301-803 | EN 61076-2-101 | EN 61984
Switching position indication: LED
Type of mounting: On air solenoid valve with M2.5 central screw
Product weight: 13.18 g
Electrical connection 1: Socket, as per EN 175301-803, form C
Electrical connection 2: Straight plug, M12x1, 2-pin, A-coded
DC operating voltage range: 12 V...24 V
Nominal operating voltage DC: 24 V
Operating voltage range AC: 12 V...24 V
Current rating: 0.12 A
Surge resistance: 2.5 kV
Degree of protection: IP65
Ambient temperature: -10 °C...50 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Contamination level: 3
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Housing material: PA
Housing colour: Transparent
Material of screw-type lock: Steel, nickel-plated
Seals material: HNBR | NBR
Material of pin contacts: Silver-plated copper alloy | Gold-plated brass

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 188024. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
