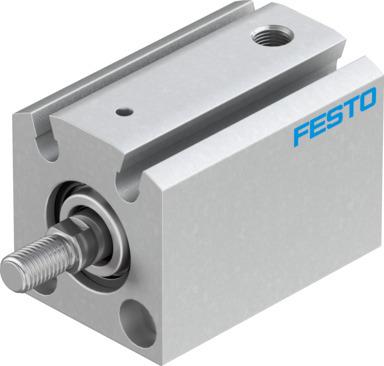

Reference imageConfirm configuration by manufacturer part number.
Festo
188084
Short-stroke cylinder AEVC-12-5-A-P-A
The Festo 188084 is a single-acting industrial component featuring a 12 mm piston diameter, a 5 mm stroke, and elastic cushioning rings or pads at both ends for pushing operation. This unit operates within a pressure range of 1.5 bar to 10 bar (0.15 MPa to 1.0 MPa, 21.75 psi to 145 psi) using compressed air conforming to ISO 8573-1:2010 [7:4:4], with an ambient temperature range of -20 °C to 80 °C and provision for proximity sensor position sensing. It offers a 59 N theoretical advancing force at 6 bar, a spring resetting force of 4 N with the piston rod retracted, an M5 pneumatic connection, and optional mounting via through-hole or accessories. Submit the exact part number, quantity, and application requirements to request a quote for this 58 g component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188084
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188084.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 12 mm
- Spring resetting force with piston rod in retracted position
- 4 N
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar | 21.75 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, advancing
- 59 N
- Moving mass
- 8.4 g
- Product weight
- 58 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188084. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
