Festo
188113

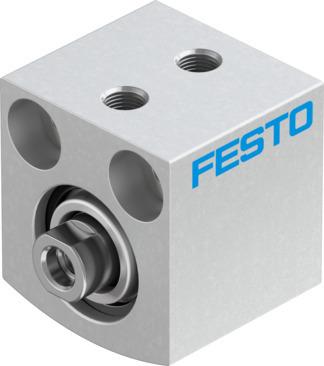

Short-stroke cylinder ADVC-16-5-I-P
The Festo 188113 is a double-acting industrial component featuring a 16 mm piston diameter and a 5 mm stroke with elastic cushioning rings at both ends. It operates within a pressure range of 1 bar to 10 bar (14.5 psi to 145 psi) using compressed air according to ISO 8573-1:2010 [7:4:4], supporting optional oil lubrication and functioning across an ambient temperature range of -20 °C to 80 °C. This structural piston and piston rod design achieves a moving mass of 11 g and delivers theoretical forces of 90 N retracting and 121 N advancing at 6 bar. Submit the exact part number, quantity, and application requirements to request a formal quote for this 39 g unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188113
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188113.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 16 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- None
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 90 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass
- 11 g
- Moving mass at 0 mm stroke
- 9 g
- Additional moving mass per 10 mm stroke
- 4 g
- Product weight
- 39 g
- Basic weight with 0 mm stroke
- 36 g
- Additional weight per 10 mm stroke
- 14 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- NBR | TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188113. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
