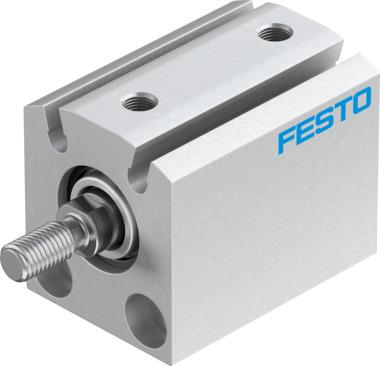

Reference imageConfirm configuration by manufacturer part number.
Festo
188119
Short-stroke cylinder ADVC-16-10-A-P-A
The Festo part number 188119 is a double-acting industrial component featuring a 16 mm piston diameter and a 10 mm stroke, operating via compressed air in accordance with ISO 8573-1:2010 [7:4:4] across a pressure range of 1 bar to 10 bar. Built with elastic cushioning rings at both ends and a piston rod structural design, this unit supports any mounting position, position sensing via proximity sensor, and oil-lubricated operation. It delivers theoretical forces of 121 N advancing and 90 N retracting at 6 bar, while maintaining a basic product weight of 90 g with a moving mass of 17 g within an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188119
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188119.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 16 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 90 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass
- 17 g
- Moving mass at 0 mm stroke
- 13 g
- Additional moving mass per 10 mm stroke
- 4 g
- Product weight
- 90 g
- Basic weight with 0 mm stroke
- 69 g
- Additional weight per 10 mm stroke
- 20 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188119. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
