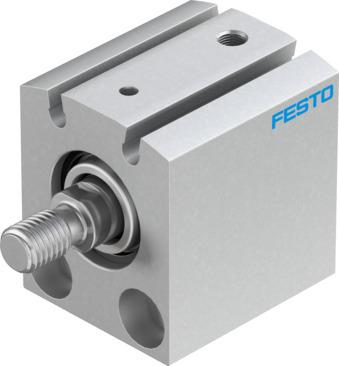

Reference imageConfirm configuration by manufacturer part number.
Festo
188134
Short-stroke cylinder AEVC-20-5-A-P-A
The Festo 188134 is a single-acting industrial component with a 20 mm piston diameter and a 5 mm stroke, featuring a pushing mode of operation and elastic cushioning rings or pads at both ends. Designed with a structural piston and piston rod supporting position sensing via proximity sensors, it operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar or 21.75 psi to 145 psi) using compressed air according to ISO 8573-1:2010 [7:4:4]. This 120 g unit delivers a theoretical advancing force of 170 N at 6 bar with a 26 g moving mass, a spring resetting force of 10 N in the retracted position, and accommodates through-hole or accessory mounting in any position. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188134
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188134.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 20 mm
- Spring resetting force with piston rod in retracted position
- 10 N
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar | 21.75 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, advancing
- 170 N
- Moving mass
- 26 g
- Product weight
- 120 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- High-alloy steel
