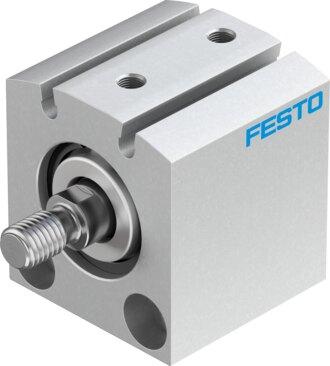

Reference imageConfirm configuration by manufacturer part number.
Festo
188182
Short-stroke cylinder ADVC-25-5-A-P-A
The Festo part number 188182 is a double-acting industrial component featuring a 25 mm piston diameter and a 5 mm stroke with elastic cushioning rings or pads at both ends. Designed with a piston and piston rod structural design supporting any mounting position, this unit operates on compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar, 14.5 psi to 145 psi). It delivers a theoretical force of 295 N advancing and 247 N retracting at 6 bar, incorporates position sensing for a proximity sensor, and features an ambient temperature range of -20 °C to 80 °C with a total product weight of 151 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188182
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188182.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass
- 32 g
- Moving mass at 0 mm stroke
- 29 g
- Additional moving mass per 10 mm stroke
- 6 g
- Product weight
- 151 g
- Basic weight with 0 mm stroke
- 134 g
- Additional weight per 10 mm stroke
- 34 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- TPE-U(PU)
