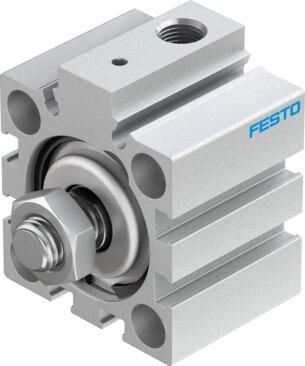

Name: Festo 188202 Short-stroke cylinder AEVC-32-10-A-P
Brand: Festo

Short-stroke cylinder AEVC-32-10-A-P

The Festo part number 188202 is a single-acting industrial component featuring a 32 mm piston diameter and a 10 mm stroke, operating via a pushing mode of operation with a spring resetting force of 22 N in the retracted position. Built to ISO 6431 and VDMA 24562 norm hole patterns, this piston rod assembly operates within a pressure range of 1 bar to 10 bar utilizing compressed air according to ISO 8573-1:2010 [7:4:4], and delivers a theoretical advancing force of 450 N at 6 bar. It incorporates elastic cushioning rings at both ends, a G1/8 pneumatic connection, through-hole or accessory mounting options, and functions across an ambient temperature range of -20 °C to 80 °C with a product weight of 169 g. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 188202
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 188202.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm
Piston diameter: 32 mm
Spring resetting force with piston rod in retracted position: 22 N
Based on norm: ISO 6431 | Hole pattern | VDMA 24562
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Pushing | Single-acting
Structural design: Piston | Piston rod
Position sensing: None
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Theoretical force at 6 bar, advancing: 450 N
Moving mass: 48 g
Product weight: 169 g
Type of mounting: Optionally: | With through-hole | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS-compliant
Cover material: Wrought aluminum alloy | Anodized
Seals material: NBR | TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 188202. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
