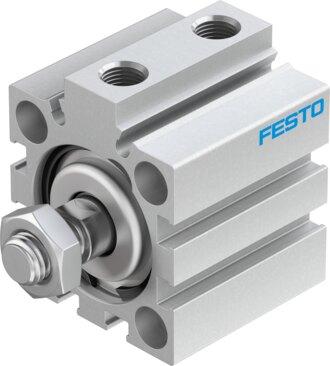

Reference imageConfirm configuration by manufacturer part number.
Festo
188215
Short-stroke cylinder ADVC-32-10-A-P-A
The Festo 188215 is a double-acting industrial component featuring a 32 mm piston diameter and a 10 mm stroke, constructed with a piston and piston rod based on ISO 6431, hole pattern, and VDMA 24562 norms. Designed for operation with compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 1 bar to 10 bar, this unit incorporates elastic cushioning rings at both ends and provisions for position sensing via proximity sensor. It delivers a theoretical force of 483 N advancing and 415 N retracting at 6 bar, functioning across an ambient temperature range of -20 °C to 80 °C with a product weight of 201 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188215
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188215.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 32 mm
- Based on norm
- ISO 6431 | Hole pattern | VDMA 24562
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass
- 55 g
- Moving mass at 0 mm stroke
- 45 g
- Additional moving mass per 10 mm stroke
- 10 g
- Product weight
- 201 g
- Basic weight with 0 mm stroke
- 166 g
- Additional weight per 10 mm stroke
- 90 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188215. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
