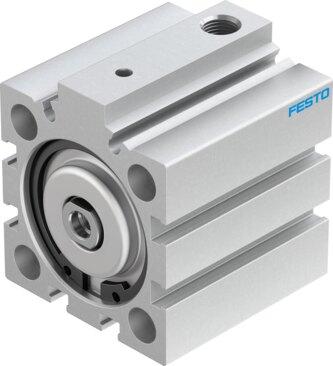

Reference imageConfirm configuration by manufacturer part number.
Festo
188227
Short-stroke cylinder AEVC-40-25-I-P
The Festo 188227 is a single-acting industrial component featuring a 40 mm piston diameter and a 25 mm stroke, engineered for pushing operation with a spring resetting force of 28 N in the retracted position. Operating within a pressure range of 1 bar to 10 bar (14.5 psi to 145 psi), this ISO 6431 and VDMA 24562 compliant cylinder utilizes elastic cushioning rings at both ends and accommodates compressed air media according to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical advancing force of 707 N at 6 bar, supports optional through-hole or accessory mounting in any position, and features a G1/8 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188227
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188227.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 40 mm
- Spring resetting force with piston rod in retracted position
- 28 N
- Based on norm
- ISO 6431 | Hole pattern | VDMA 24562
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Structural design
- Piston | Piston rod
- Position sensing
- None
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, advancing
- 707 N
- Moving mass
- 83 g
- Product weight
- 320 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- NBR | TPE-U(PU)
