Festo
188246

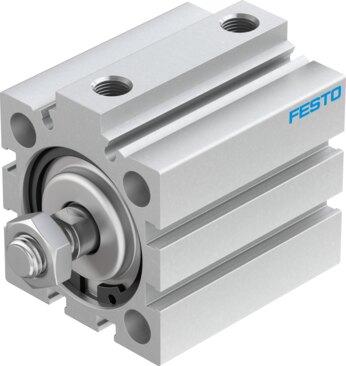

Short-stroke cylinder ADVC-40-25-A-P-A
The Festo 188246 is a double-acting industrial component featuring a 40 mm piston diameter and a 25 mm stroke, built to ISO 6431 and VDMA 24562 standards with a piston and piston rod structural design. This pneumatic actuator operates between 1 bar and 10 bar (14.5 psi to 145 psi) utilizing compressed air per ISO 8573-1:2010 [7:4:4] with elastic cushioning rings at both ends, position sensing capability for proximity sensors, and an ambient temperature range of -20 °C to 80 °C. It delivers a theoretical advancing force of 754 N and a retracting force of 686 N at 6 bar, maintaining a product weight of 290 g and a corrosion resistance class of 1. Submit your exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188246
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188246.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 40 mm
- Based on norm
- ISO 6431 | Hole pattern | VDMA 24562
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 686 N
- Theoretical force at 6 bar, advancing
- 754 N
- Moving mass
- 86 g
- Moving mass at 0 mm stroke
- 61 g
- Additional moving mass per 10 mm stroke
- 10 g
- Product weight
- 290 g
- Basic weight with 0 mm stroke
- 275 g
- Additional weight per 10 mm stroke
- 26 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188246. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
