188255

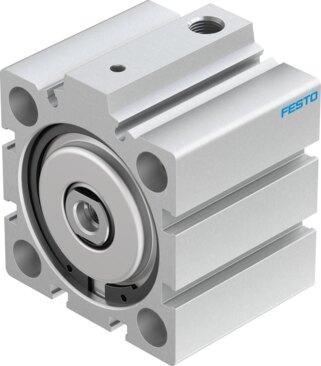

Name: Festo 188255 Short-stroke cylinder AEVC-50-25-I-P
Brand: Festo

Short-stroke cylinder AEVC-50-25-I-P

The Festo 188255 is a single-acting industrial component operating via pushing mode with a 50 mm piston diameter and a 25 mm stroke, utilizing elastic cushioning rings at both ends and a G1/8 pneumatic connection. Operating within a pressure range of 1 bar to 10 bar (14.5 psi to 145 psi), this VDMA 24562 and ISO 6431 norm-based unit delivers a theoretical advancing force of 1121 N at 6 bar alongside a 40 N spring resetting force in the retracted position. Built with a moving mass of 140 g, a total product weight of 433 g, and CRC 1 corrosion resistance, it functions across an ambient temperature range of -20 °C to 80 °C with compressed air per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 188255
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 188255.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 25 mm
Piston diameter: 50 mm
Spring resetting force with piston rod in retracted position: 40 N
Based on norm: ISO 6431 | Hole pattern | VDMA 24562
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Pushing | Single-acting
Structural design: Piston | Piston rod
Position sensing: None
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Theoretical force at 6 bar, advancing: 1121 N
Moving mass: 140 g
Product weight: 433 g
Type of mounting: Optionally: | With through-hole | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS-compliant
Cover material: Wrought aluminum alloy | Anodized
Seals material: NBR | TPE-U(PU)
