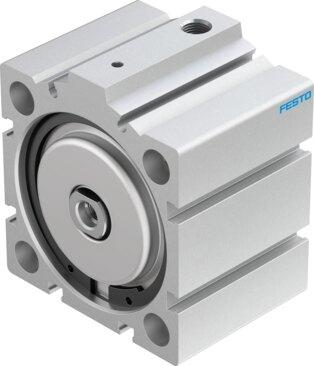

Reference imageConfirm configuration by manufacturer part number.
Festo
188279
Short-stroke cylinder AEVC-63-25-I-P
This Festo single-acting industrial component features a 63 mm piston diameter, a 25 mm stroke, and a 50 N spring resetting force with the piston rod in the retracted position based on ISO 6431 and VDMA 24562 norms. Designed for pushing operations with elastic cushioning rings at both ends and a G1/8 pneumatic connection, it delivers a theoretical advancing force of 1799 N at 6 bar across an operating pressure range of 1 bar to 10 bar. The unit weighs 640 g with a 191 g moving mass, operates in ambient temperatures from -20 °C to 80 °C using compressed air as per ISO 8573-1:2010 [7:4:4], and offers optional through-hole mounting or accessory installation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188279
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188279.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 63 mm
- Spring resetting force with piston rod in retracted position
- 50 N
- Based on norm
- ISO 6431 | Hole pattern | VDMA 24562
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Structural design
- Piston | Piston rod
- Position sensing
- None
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, advancing
- 1799 N
- Moving mass
- 191 g
- Product weight
- 640 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
- Seals material
- NBR | TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188279. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
