188282

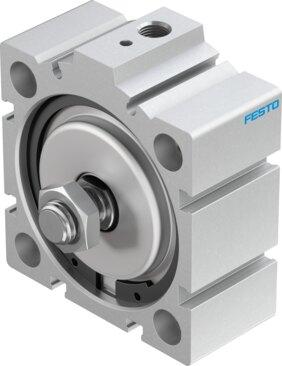

Name: Festo 188282 Short-stroke cylinder AEVC-63-10-A-P
Brand: Festo

Short-stroke cylinder AEVC-63-10-A-P

The Festo part number 188282 is a single-acting industrial component featuring a 63 mm piston diameter and a 10 mm stroke, operating via compression in a pushing mode with a 50 N spring resetting force at the retracted position. Built to ISO 6431 and VDMA 24562 norm hole patterns, this piston and piston rod assembly incorporates elastic cushioning rings at both ends, functions within an operating pressure range of 1 bar to 10 bar (14.5 psi to 145 psi), and delivers a theoretical advancing force of 1799 N at 6 bar using ISO 8573-1:2010 [7:4:4] compressed air. The unit weighs 460 g with a 157 g moving mass, features a G1/8 pneumatic connection, has a CRC rating of 1 for low corrosion stress, and accommodates ambient temperatures from -20 °C to 80 °C in any mounting position with optional through-hole or accessory installation. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 188282
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 188282.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm
Piston diameter: 63 mm
Spring resetting force with piston rod in retracted position: 50 N
Based on norm: ISO 6431 | Hole pattern | VDMA 24562
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Pushing | Single-acting
Structural design: Piston | Piston rod
Position sensing: None
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Theoretical force at 6 bar, advancing: 1799 N
Moving mass: 157 g
Product weight: 460 g
Type of mounting: Optionally: | With through-hole | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS-compliant
Cover material: Wrought aluminum alloy | Anodized
Seals material: NBR | TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 188282. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
