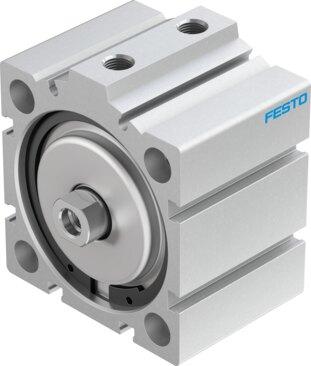

Reference imageConfirm configuration by manufacturer part number.
Festo
188289
Short-stroke cylinder ADVC-63-15-I-P
The Festo 188289 is a double-acting industrial component featuring a 63 mm piston diameter and a 15 mm stroke, built to ISO 6431 and VDMA 24562 standards with a piston and piston rod structural design. This unit operates within a pressure range of 0.06 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], and incorporates elastic cushioning rings at both ends for ambient temperatures between -20 °C and 80 °C. It delivers a theoretical force of 1870 N advancing and 1750 N retracting at 6 bar, with a total product weight of 616 g and a moving mass of 178 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188289
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188289.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 63 mm
- Based on norm
- ISO 6431 | Hole pattern | VDMA 24562
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- None
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar | 8.7 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 1750 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass
- 178 g
- Moving mass at 0 mm stroke
- 162 g
- Additional moving mass per 10 mm stroke
- 16 g
- Product weight
- 616 g
- Basic weight with 0 mm stroke
- 578 g
- Additional weight per 10 mm stroke
- 80 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188289. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
