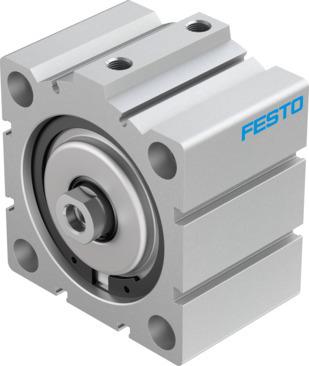

Name: Festo 188309 Short-stroke cylinder ADVC-80-15-I-P-A
Brand: Festo

Short-stroke cylinder ADVC-80-15-I-P-A

The Festo 188309 is a double-acting industrial component featuring an 80 mm piston diameter, a 15 mm stroke, and structural design utilizing a piston and piston rod based on ISO 6431, hole pattern, and VDMA 24562 norms. It operates within a pressure range of 1 bar to 10 bar utilizing compressed air as per ISO 8573-1:2010 [7:4:4], providing elastic cushioning rings at both ends, position sensing for proximity sensors, and any mounting position. This unit delivers a theoretical force of 3016 N advancing and 2827 N retracting at 6 bar, with a total product weight of 1180 g and a moving mass of 289 g. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 188309
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 188309.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 15 mm
Piston diameter: 80 mm
Based on norm: ISO 6431 | Hole pattern | VDMA 24562
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Piston | Piston rod
Position sensing: For proximity sensor
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Theoretical force at 6 bar, retracting: 2827 N
Theoretical force at 6 bar, advancing: 3016 N
Moving mass: 289 g
Moving mass at 0 mm stroke: 265 g
Additional moving mass per 10 mm stroke: 24 g
Product weight: 1180 g
Basic weight with 0 mm stroke: 1119 g
Additional weight per 10 mm stroke: 114 g
Type of mounting: Optionally: | With through-hole | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS-compliant
Cover material: Wrought aluminum alloy | Anodized

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 188309. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
