Festo
188314

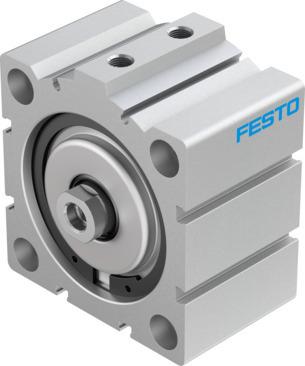

Short-stroke cylinder ADVC-80-20-I-P
The Festo part number 188314 is a double-acting industrial component featuring an 80 mm piston diameter and a 20 mm stroke, built on ISO 6431 and VDMA 24562 norm hole patterns with a structural design incorporating a piston and piston rod. Operating within a pressure range of 1 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], this unit provides elastic cushioning rings at both ends, a moving mass of 351 g, and theoretical forces of 2827 N retracting and 3016 N advancing at 6 bar. It functions in any mounting position across ambient temperatures from -20 °C to 80 °C, exhibits a corrosion resistance class of 1, and weighs 1152 g with oil lubrication operation possible. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188314
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188314.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 20 mm
- Piston diameter
- 80 mm
- Based on norm
- ISO 6431 | Hole pattern | VDMA 24562
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- None
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 2827 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass
- 351 g
- Moving mass at 0 mm stroke
- 315 g
- Additional moving mass per 10 mm stroke
- 24 g
- Product weight
- 1152 g
- Basic weight with 0 mm stroke
- 994 g
- Additional weight per 10 mm stroke
- 112 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
