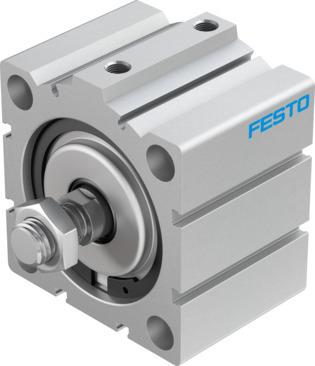

Reference imageConfirm configuration by manufacturer part number.
Festo
188318
Short-stroke cylinder ADVC-80-20-A-P-A
The Festo 188318 is a double-acting industrial component featuring an 80 mm piston diameter, a 20 mm stroke, and structural design utilizing a piston and piston rod based on ISO 6431, hole pattern, and VDMA 24562 norms. Operating within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar, 14.5 psi to 145 psi) and an ambient temperature range of -20 °C to 80 °C, this unit delivers a theoretical force of 3016 N advancing and 2827 N retracting at 6 bar. It incorporates elastic cushioning rings at both ends, position sensing capability for proximity sensors, and a corrosion resistance class of 1, while functioning with compressed air as per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188318
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188318.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 20 mm
- Piston diameter
- 80 mm
- Based on norm
- ISO 6431 | Hole pattern | VDMA 24562
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 2827 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass
- 301 g
- Moving mass at 0 mm stroke
- 265 g
- Additional moving mass per 10 mm stroke
- 24 g
- Product weight
- 1297 g
- Basic weight with 0 mm stroke
- 1119 g
- Additional weight per 10 mm stroke
- 114 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188318. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
