Festo
188341

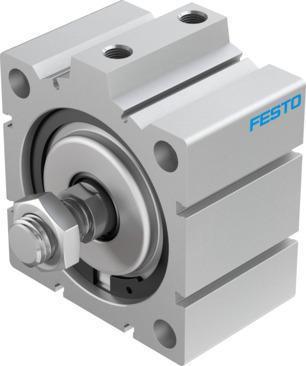

Short-stroke cylinder ADVC-100-15-A-P-A
The Festo part number 188341 is a double-acting industrial component featuring a 100 mm piston diameter and a 15 mm stroke, built on ISO 6431 and VDMA 24562 norm hole patterns with a piston and piston rod structural design. It operates within a pressure range of 1 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 4712 N advancing and 4418 N retracting at 6 bar while incorporating elastic cushioning rings at both ends and position sensing for proximity sensors. This unit weighs 2325 g, exhibits a CRC rating of 1 for low corrosion stress, functions within an ambient temperature range of -20 °C to 80 °C, and permits oil lubrication operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188341
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188341.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 100 mm
- Based on norm
- ISO 6431 | Hole pattern | VDMA 24562
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Theoretical force at 6 bar, retracting
- 4418 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass
- 555 g
- Moving mass at 0 mm stroke
- 515 g
- Additional moving mass per 10 mm stroke
- 40 g
- Product weight
- 2325 g
- Basic weight with 0 mm stroke
- 2145 g
- Additional weight per 10 mm stroke
- 110 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/4
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy | Anodized
