Festo
188399

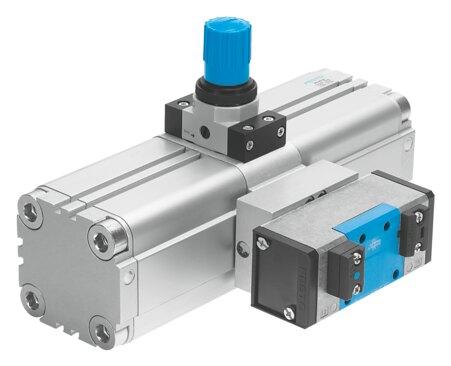

Pressure booster DPA-100-16
The Festo part number 188399 is a double-piston pressure booster featuring a 100 mm piston diameter and a G1/4 pressure gauge setup, configurable in any mounting position. It operates with compressed air as per ISO 8573-1:2010 [7:3:4] within an inlet pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar | 29 psi to 145 psi) and delivers an output pressure of 0.4 MPa to 1.6 MPa (4 bar to 16 bar | 58 psi to 232 psi). Operation with oil lubrication is not possible, and maximum controller spring tension may exceed the output pressure by 40%. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188399
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188399.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Piston diameter
- 100 mm
- Mounting position
- Any
- Structural design
- Double-piston pressure booster
- Pressure gauge
- Set up for G1/4
- Output pressure 2
- 0.4 MPa...1.6 MPa | 58 psi...232 psi
- Outlet pressure 2
- 4 bar...16 bar
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar | 29 psi...145 psi
- Pressure regulation range MPa
- 0.4 MPa...1.6 MPa
- Pressure regulation range
- 4 bar...16 bar
- Pressure regulation range psi
- 58 psi...232 psi
- Inlet pressure 1
- 2 bar...10 bar
- Inlet pressure 1 MPa
- 0.2 MPa...1 MPa
- Inlet pressure 1 psi
- 29 psi...145 psi
- Information on pressure regulation range
- If the controller spring is tensioned to the maximum, the maximum | output pressure may be exceeded by 40%.
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:3:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 13000 g
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Pneumatic connection 3
- G1/2
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188399. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
