Festo
188882

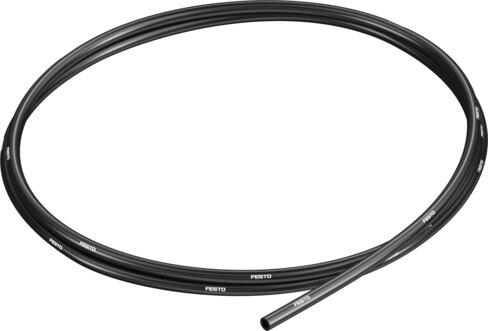

Plastic tubing PUN-CM-4-SW
The Festo 188882 is an industrial component featuring a black TPE-U(PU) pneumatic tubing construction with a 4 mm outside diameter, a 2.5 mm inside diameter, and a D 52 +/-3 Shore hardness. Operating on compressed air as per ISO 8573-1:2010 [7:-:-], this RoHS compliant part supports a temperature-dependent operating pressure from -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) and an ambient temperature range of -35 °C to 60 °C. The component weighs 0.00993 kg/m, provides a surface resistance of 0.01 MOhm to 10 MOhm, and includes a bending radius relevant for flow rate of 17 mm alongside a minimum bending radius of 8 mm. Designed with VDMA24364-B2-L LABS (PWIS) conformity, it is suitable for energy chains and utilizes a pneumatic connection for plug connections with a 4 mm outside diameter. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188882
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188882.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 4 mm
- Bending radius relevant for ow rate
- 17 mm
- Inside diameter
- 2.5 mm
- Min. bending radius
- 8 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Surface resistance
- 0.01 MOhm...10 MOhm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.00993 kg/m
- Pneumatic connection
- For plug connection outside diameter 4 mm
- Color
- Black
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
