Festo
188883

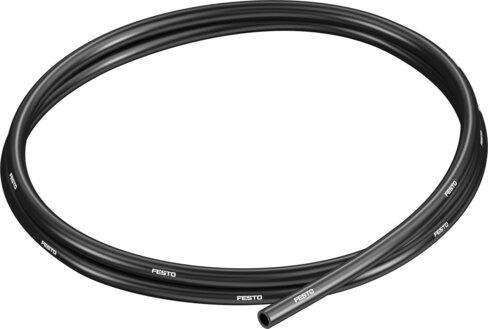

Plastic tubing PUN-CM-6-SW
This Festo industrial component, part number 188883, is a black TPE-U(PU) pneumatic tubing featuring a 6 mm outside diameter, a 4 mm inside diameter, and a D 52 +/-3 Shore hardness with RoHS-compliant materials. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across a temperature-dependent operating pressure of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar | -13.775 psi to 145 psi) and an ambient temperature range of -35 °C to 60 °C. The tubing is suitable for energy chains, exhibits a surface resistance of 0.01 MOhm to 10 MOhm, a VDMA24364-B2-L LABS (PWIS) conformity, a product weight of 0.02125 kg/m, a minimum bending radius of 14 mm, and a bending radius relevant for flow rate of 28 mm for plug connections with a 6 mm outside diameter. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 188883
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 188883.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 6 mm
- Bending radius relevant for ow rate
- 28 mm
- Inside diameter
- 4 mm
- Min. bending radius
- 14 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Surface resistance
- 0.01 MOhm...10 MOhm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.02125 kg/m
- Pneumatic connection
- For plug connection outside diameter 6 mm
- Color
- Black
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 188883. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
