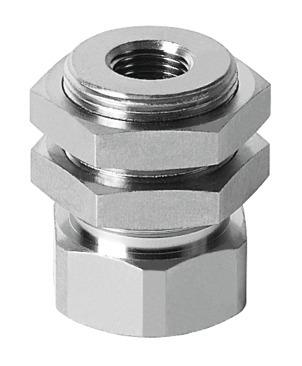

Reference imageConfirm configuration by manufacturer part number.
Festo
189201
Vacuum suction cup holder ESH-HA-5-G
The Festo 189201 is an industrial component featuring an 8 mm nominal width, a volume of 1.862 cm³, and a top vacuum connection designed with a G1/8 port and M10 suction cup mounting. Built with a size 5 suction cup holder classification, an aluminum, nickel-plated brass, POM, quenched and tempered steel, and high-alloy steel retainer bracket, this unit operates within an ambient temperature range of -10 °C to 60 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-]. It weighs 84 g, offers any mounting position via a locknut, complies with RoHS materials, and features a CRC 1 corrosion resistance class with VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189201
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189201.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8 mm
- Volume
- 1.862 cm³
- Mounting position
- Any
- Structural design
- Vacuum connection at top
- Classication of suction cup holder
- Size 5
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 84 g
- Type of mounting
- With locknut
- Suction cup mounting
- M10
- Vacuum connection
- G1/8
- Note on materials
- RoHS compliant
- Retainer bracket material
- Aluminum | Brass, nickel-plated | POM | Quenched and tempered steel | High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189201. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
