Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

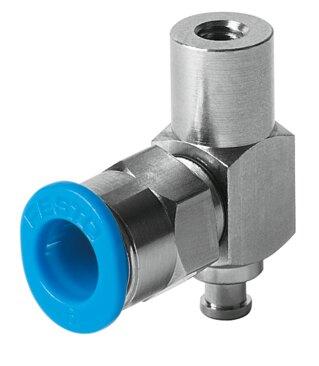

Reference imageConfirm configuration by manufacturer part number.
Festo
189205
Vacuum suction cup holder ESH-HB-2-QS
The Festo part number 189205 is an industrial component featuring a structural design with a side vacuum connection, a nominal width of 2 mm, and a volume of 0.418 cm³. Built with NBR and steel seals alongside a retainer bracket composed of aluminum, nickel-plated brass, POM, quenched and tempered steel, and high-alloy steel, this 13 g unit operates within an ambient temperature range of 0 °C to 60 °C utilizing atmospheric air based on ISO 8573-1:2010 [7:-:-]. It offers a size 2 suction cup holder classification with a 4 mm suction cup mounting diameter, internal thread mounting, a QS-6 vacuum connection, and any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote for this RoHS compliant component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189205
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189205.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2 mm
- Volume
- 0.418 cm³
- Mounting position
- Any
- Structural design
- Vacuum connection at side
- Classication of suction cup holder
- Size 2
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 13 g
- Type of mounting
- With internal thread
- Suction cup mounting
- Diameter: 4 mm
- Vacuum connection
- QS-6
- Note on materials
- RoHS compliant
- Seals material
- NBR | Steel
- Retainer bracket material
- Aluminum | Brass, nickel-plated | POM | Quenched and tempered steel | High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189205. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
