Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

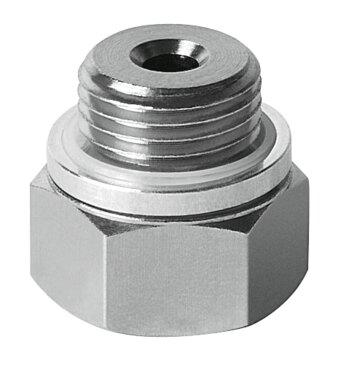

Reference imageConfirm configuration by manufacturer part number.
Festo
189255
Vacuum suction cup holder ESH-HE-3-G1/8
The Festo part number 189255 is an industrial component featuring a 3 mm nominal width, 0.106 cm³ volume, and an 11 g product weight with a CRC 1 low corrosion stress rating. Constructed with a wrought aluminum alloy, NBR, POM, and steel seal material alongside a quenched and tempered steel retainer bracket, this RoHS-compliant unit operates on atmospheric air per ISO 8573-1:2010 [7:-:-] within an ambient temperature range of -10 °C to 60 °C. It utilizes a top vacuum connection structural design with a G1/8 vacuum port, an M4 suction cup mounting, and allows for any mounting position using an external thread or via the vacuum connection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189255
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189255.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 3 mm
- Volume
- 0.106 cm³
- Mounting position
- Any
- Structural design
- Vacuum connection at top
- Classication of suction cup holder
- Size 3
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 11 g
- Type of mounting
- With external thread | Via vacuum connection
- Suction cup mounting
- M4
- Vacuum connection
- G1/8
- Note on materials
- RoHS compliant
- Seals material
- Wrought aluminum alloy | NBR | POM | Steel
- Retainer bracket material
- Quenched and tempered steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189255. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
