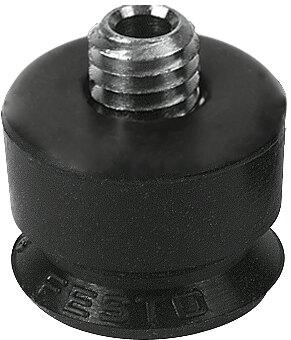

Reference imageConfirm configuration by manufacturer part number.
Festo
189288
Vacuum suction cup ESS-10-SNA
The Festo 189288 is an antistatic, round flat industrial component featuring a 10 mm suction cup diameter, 2 mm nominal width, and 0.05 cm³ suction cup volume with an upward connection position. Operating within a pressure range of -95 kPa to 0 kPa and an ambient temperature of -10 °C to 70 °C, this 1.5 g part delivers a holding force of 3.9 N and a lateral force of 7.5 N at a nominal operating pressure of -70 kPa. It exhibits a surface resistance of 200 Ohm, a low corrosion stress rating of CRC 1, and VDMA24364-A1-L LABS conformity while utilizing atmospheric air as the operating medium. Submit your exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189288
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189288.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 30 mm
- Nominal width
- 2 mm
- Suction cup diameter
- 10 mm
- Suction cup volume
- 0.05 cm³
- Connection position
- up
- Mounting position
- Any
- Special features
- Antistatic
- Classication of suction cup holder
- Size 3
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Surface resistance
- 200 Ohm
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...70 °C
- Holding force at nominal operating pressure
- 3.9 N
- Lateral force at nominal operating pressure
- 7.5 N
- Product weight
- 1.5 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M4
- Color
- Black/white dot
- Shore hardness
- 50 +/-5
- Material of screwed plug
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189288. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
