189293

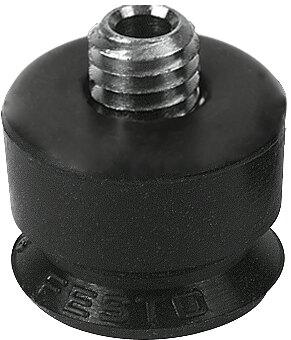

Name: Festo 189293 Vacuum suction cup ESS-15-SNA
Brand: Festo

Vacuum suction cup ESS-15-SNA

The Festo 189293 is an antistatic, round, flat industrial component featuring a 15 mm suction cup diameter, a 2 mm nominal width, and a 0.208 cm³ suction cup volume with an upward connection position. It operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 8.5 N alongside a lateral force of 13.5 N at its nominal operating pressure of -70 kPa. Designed for any mounting position, this 1.9 g component functions within an ambient temperature range of -10 °C to 70 °C and exhibits a surface resistance of 200 Ohm with a low corrosion stress rating. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189293
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189293.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Min. workpiece radius: 35 mm
Nominal width: 2 mm
Suction cup diameter: 15 mm
Suction cup volume: 0.208 cm³
Connection position: up
Mounting position: Any
Special features: Antistatic
Classication of suction cup holder: Size 3
Suction cup shape: Round, at
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Surface resistance: 200 Ohm
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...70 °C
Holding force at nominal operating pressure: 8.5 N
Lateral force at nominal operating pressure: 13.5 N
Product weight: 1.9 g
Type of mounting: Via vacuum connection
Vacuum connection: M4
Color: Black/white dot
Shore hardness: 50 +/-5
Material of screwed plug: Brass, nickel-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 189293. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
