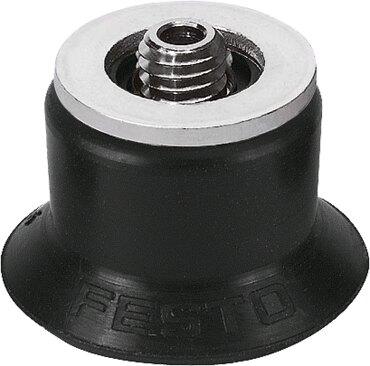

Name: Festo 189294 Vacuum suction cup ESS-20-SN
Brand: Festo

Vacuum suction cup ESS-20-SN

The Festo part number 189294 is an industrial component featuring a round, flat suction cup with a 20 mm diameter, a 3 mm nominal width, and a 0.318 cm³ suction cup volume designed for a minimum workpiece radius of 60 mm. Weighing 6.4 g, this component mounts via an M6 vacuum connection with an upward connection position and supports any mounting position within an ambient temperature range of -10 °C to 70 °C. Operating at a nominal operating pressure of -70 kPa (-0.7 bar, -10.15 psi) with an operating pressure range from -95 kPa to 0 kPa, it delivers a holding force of 16.3 N and a lateral force of 11.5 N using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit your exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189294
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189294.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Min. workpiece radius: 60 mm
Nominal width: 3 mm
Suction cup diameter: 20 mm
Suction cup volume: 0.318 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 4
Suction cup shape: Round, at
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...70 °C
Holding force at nominal operating pressure: 16.3 N
Lateral force at nominal operating pressure: 11.5 N
Product weight: 6.4 g
Type of mounting: Via vacuum connection
Vacuum connection: M6
Color: Black
Shore hardness: 60 +/-5
Material of screwed plug: Brass, nickel-plated | Steel, galvanized and chrome-plated
Note on materials: RoHS compliant
