Festo
189297

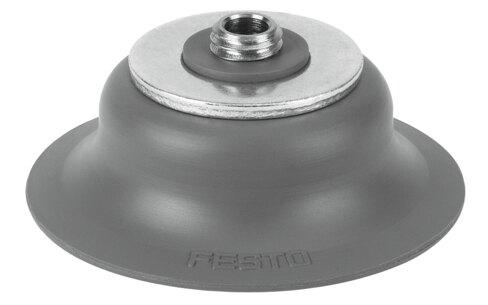

Vacuum suction cup ESS-20-SF
The Festo part number 189297 is an industrial component featuring a round, flat suction cup with a 20 mm diameter, a 3 mm nominal width, and a 0.318 cm³ suction cup volume designed for a minimum workpiece radius of 60 mm. This assembly provides a holding force of 16.3 N and a lateral force of 15.5 N at a nominal operating pressure of -70 kPa, functioning within an operating pressure range of -95 kPa to 0 kPa and ambient temperatures from -10 °C to 200 °C. Weighing 6.4 g with a CRC rating of 1 for low corrosion stress, it utilizes an M6 vacuum connection positioned at the top for mounting in any position. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189297
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189297.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 60 mm
- Nominal width
- 3 mm
- Suction cup diameter
- 20 mm
- Suction cup volume
- 0.318 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 4
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...200 °C
- Holding force at nominal operating pressure
- 16.3 N
- Lateral force at nominal operating pressure
- 15.5 N
- Product weight
- 6.4 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M6
- Color
- Gray
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Brass, nickel-plated | Steel, galvanized and chrome-plated
- Note on materials
- RoHS compliant
