Festo
189305

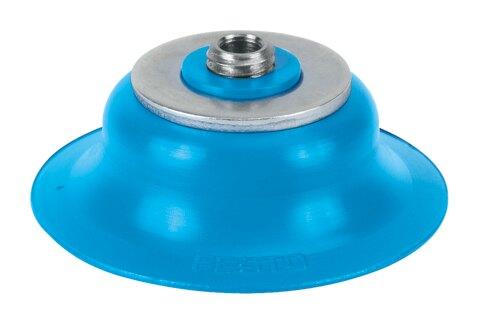

Vacuum suction cup ESS-40-SU
The Festo 189305 is a round, flat industrial component featuring a 40 mm suction cup diameter, a 3 mm nominal width, and an upward connection position for mounting via an M6 vacuum connection in any orientation. It operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 69.6 N along with a lateral force of 83 N at its nominal operating pressure of -70 kPa. Weighing 16.3 g with a suction cup volume of 1.566 cm³, this part accommodates a minimum workpiece radius of 230 mm across an ambient temperature range of -20 °C to 60 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Request a quote by submitting the exact part number, required quantity, and application parameters.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189305
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189305.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 230 mm
- Nominal width
- 3 mm
- Suction cup diameter
- 40 mm
- Suction cup volume
- 1.566 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 4
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 69.6 N
- Lateral force at nominal operating pressure
- 83 N
- Product weight
- 16.3 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M6
- Color
- Blue
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy, nickel-plated | Brass, nickel-plated | Steel, galvanized and chrome-plated
