Name: Festo 189318 Vacuum suction cup ESS-80-SN
Brand: Festo

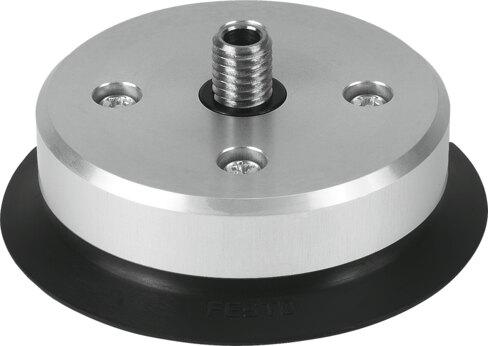

Vacuum suction cup ESS-80-SN

The Festo 189318 is a round, flat industrial component featuring an 80 mm suction cup diameter, a 6 mm nominal width, and an M10 vacuum connection positioned on top. Designed with a suction cup volume of 19.312 cm³ and a Size 5 holder classification, it operates within a pressure range of -95 kPa to 0 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-]. This 133 g unit delivers a holding force of 309.7 N and a lateral force of 315 N at a nominal operating pressure of -70 kPa, while supporting any mounting position and a minimum workpiece radius of 400 mm within an ambient temperature range of -10 °C to 70 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189318
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189318.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Min. workpiece radius: 400 mm
Nominal width: 6 mm
Suction cup diameter: 80 mm
Suction cup volume: 19.312 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 5
Suction cup shape: Round, at
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...70 °C
Holding force at nominal operating pressure: 309.7 N
Lateral force at nominal operating pressure: 315 N
Product weight: 133 g
Type of mounting: Via vacuum connection
Vacuum connection: M10
Color: Black
Shore hardness: 60 +/-5
Material of screwed plug: POM | Steel, nickel-plated | Steel, galvanized and chrome-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 189318. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
