Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
189319

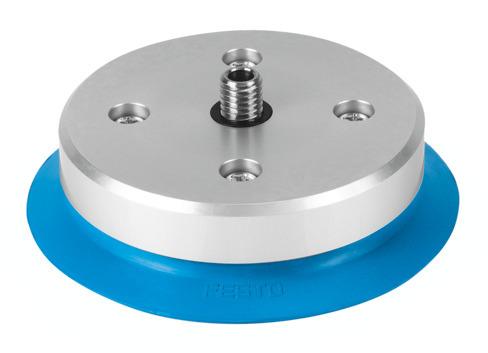

Vacuum suction cup ESS-80-SU
The Festo 189319 is an industrial component featuring a round, flat suction cup with an 80 mm diameter, a nominal width of 6 mm, and a size 5 suction cup holder classification. It operates at a nominal pressure of -70 kPa (-0.7 bar, -10.15 psi) with an operating pressure range of -95 kPa to 0 kPa (-13.775 psi to 0 psi), delivering a holding force of 309.7 N and a lateral force of 295 N at nominal operating pressure. Weighing 133 g, this component mounts via the M10 vacuum connection and operates within an ambient temperature range of -20 °C to 60 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit part number 189319 with your required quantity and application specifications to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189319
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189319.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 400 mm
- Nominal width
- 6 mm
- Suction cup diameter
- 80 mm
- Suction cup volume
- 19.312 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 5
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 309.7 N
- Lateral force at nominal operating pressure
- 295 N
- Product weight
- 133 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M10
- Color
- Blue
- Shore hardness
- 60 +/-5
- Material of screwed plug
- POM | Steel, nickel-plated | Steel, galvanized and chrome-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189319. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
