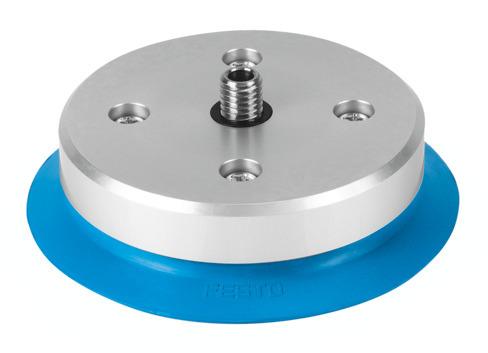

Name: Festo 189323 Vacuum suction cup ESS-100-SU
Brand: Festo

Vacuum suction cup ESS-100-SU

Manufactured by Festo, part number 189323 is a round, flat industrial component featuring a 100 mm suction cup diameter, a nominal width of 6 mm, and a 29.779 cm³ suction cup volume with an M10 vacuum connection positioned on top. It operates within a pressure range of -95 kPa to 0 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-], delivering a holding force of 503.6 N and a lateral force of 482.5 N at a nominal operating pressure of -70 kPa. Designed for any mounting position with a minimum workpiece radius of 460 mm, this 222 g component achieves a CRC rating of 1 and VDMA24364 Zone III LABS conformity for ambient temperatures between -20 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189323
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189323.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Min. workpiece radius: 460 mm
Nominal width: 6 mm
Suction cup diameter: 100 mm
Suction cup volume: 29.779 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 5
Suction cup shape: Round, at
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Ambient temperature: -20 °C...60 °C
Holding force at nominal operating pressure: 503.6 N
Lateral force at nominal operating pressure: 482.5 N
Product weight: 222 g
Type of mounting: Via vacuum connection
Vacuum connection: M10
Color: Blue
Shore hardness: 60 +/-5
Material of screwed plug: POM | Steel, nickel-plated | Steel, galvanized and chrome-plated
