Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
189324

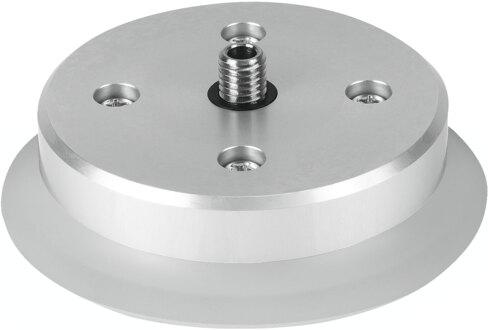

Vacuum suction cup ESS-100-SS
The Festo 189324 is a round, flat industrial component featuring a 100 mm suction cup diameter, a 6 mm nominal width, and a 29.779 cm³ suction cup volume with an M10 vacuum connection positioned on top. It operates within a pressure range of -95 kPa to 0 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-], delivering a holding force of 503.6 N and a lateral force of 130 N at a nominal operating pressure of -70 kPa. Designed with a CRC 1 corrosion resistance class and VDMA24364 Zone III LABS conformity, this 222 g unit functions across an ambient temperature range of -30 °C to 180 °C with a minimum workpiece radius of 460 mm and can be mounted in any position via its vacuum connection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189324
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189324.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 460 mm
- Nominal width
- 6 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 29.779 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 5
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -30 °C...180 °C
- Holding force at nominal operating pressure
- 503.6 N
- Lateral force at nominal operating pressure
- 130 N
- Product weight
- 222 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M10
- Color
- Transparent
- Shore hardness
- 50 +/-5
- Material of screwed plug
- POM | Steel, nickel-plated | Steel, galvanized and chrome-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189324. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
