Festo
189327

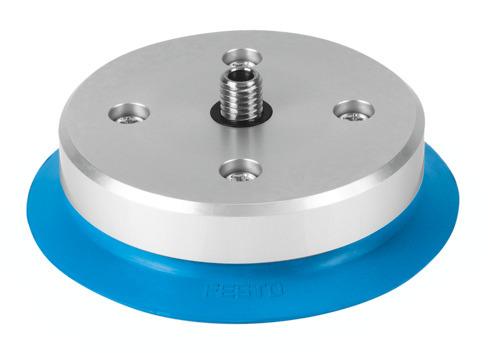

Vacuum suction cup ESS-150-SU
The Festo 189327 is a round, flat industrial component featuring a 150 mm suction cup diameter, a 10 mm nominal width, and a suction cup volume of 173.826 cm³. Designed with an upward connection position and mounting via a vacuum connection with M20x2 threads, this part operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 900 N at a nominal operating pressure of -70 kPa. With a product weight of 719 g, a minimum workpiece radius of 480 mm, and a corrosion resistance class of 1, it functions in ambient temperatures from -20 °C to 60 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189327
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189327.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 480 mm
- Nominal width
- 10 mm
- Suction cup diameter
- 150 mm
- Suction cup volume
- 173.826 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 6
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 900 N
- Lateral force at nominal operating pressure
- 1000 N
- Product weight
- 719 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M20x2
- Color
- Blue
- Shore hardness
- 60 +/-5
- Material of screwed plug
- NBR | Steel, nickel-plated | Steel, galvanized and chrome-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189327. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
