Festo
189331

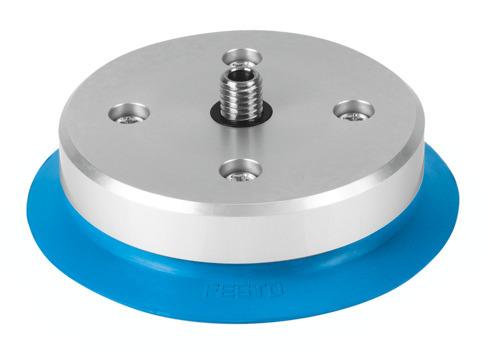

Vacuum suction cup ESS-200-SU
Engineered by Festo, the part number 189331 is a round, flat industrial suction cup featuring a 200 mm diameter, a 10 mm nominal width, and a suction cup volume of 245.454 cm³ with an upward connection position. This component operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 1610 N alongside a lateral force of 1000 N at a nominal operating pressure of -70 kPa. Constructed with a product weight of 1198 g, it supports mounting via an M20x2 vacuum connection in any position and exhibits a CRC rating of 1 for low corrosion stress. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189331
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189331.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 680 mm
- Nominal width
- 10 mm
- Suction cup diameter
- 200 mm
- Suction cup volume
- 245.454 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 6
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 1610 N
- Lateral force at nominal operating pressure
- 1000 N
- Product weight
- 1198 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M20x2
- Color
- Blue
- Shore hardness
- 60 +/-5
- Material of screwed plug
- NBR | Steel, nickel-plated | Steel, galvanized and chrome-plated
