Festo
189332

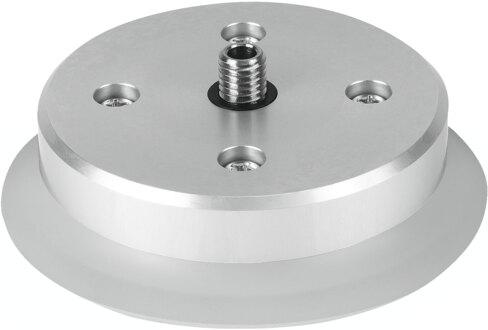

Vacuum suction cup ESS-200-SS
The Festo 189332 is a round, flat industrial component featuring a 200 mm suction cup diameter, a 10 mm nominal width, and an upward connection position that mounts via its M20x2 vacuum connection in any position. Operating at a nominal pressure of -70 kPa with a range of -95 kPa to 0 kPa, it delivers a holding force of 1610 N and a lateral force of 425 N while handling an atmospheric air operating medium from -30 °C to 180 °C. This 1198 g assembly incorporates a suction cup volume of 245.454 cm³, a minimum workpiece radius of 680 mm, size 6 suction cup holder classification, CRC 1 corrosion resistance, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189332
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189332.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 680 mm
- Nominal width
- 10 mm
- Suction cup diameter
- 200 mm
- Suction cup volume
- 245.454 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 6
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -30 °C...180 °C
- Holding force at nominal operating pressure
- 1610 N
- Lateral force at nominal operating pressure
- 425 N
- Product weight
- 1198 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M20x2
- Color
- Transparent
- Shore hardness
- 50 +/-5
- Material of screwed plug
- NBR | Steel, nickel-plated | Steel, galvanized and chrome-plated
