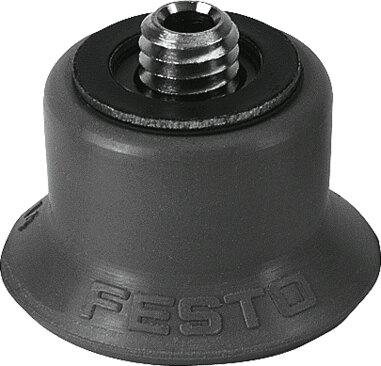

Reference imageConfirm configuration by manufacturer part number.
Festo
189341
Vacuum suction cup ESS-20-EF
The Festo industrial component, part number 189341, is a round, extra-deep suction cup with a 20 mm diameter, a 3 mm nominal width, and a 0.84 cm³ suction cup volume that accommodates a minimum workpiece radius of 30 mm. Weighing 6.4 g with a CRC rating of 1 for low corrosion stress and an ambient temperature range of -10 °C to 200 °C, this unit mounts via an M6 vacuum connection positioned at the top in any mounting position. It operates between -95 kPa and 0 kPa, delivering a holding force of 17 N and a lateral force of 15.5 N at a nominal operating pressure of -70 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189341
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189341.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 30 mm
- Nominal width
- 3 mm
- Suction cup diameter
- 20 mm
- Suction cup volume
- 0.84 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 4
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...200 °C
- Holding force at nominal operating pressure
- 17 N
- Lateral force at nominal operating pressure
- 15.5 N
- Product weight
- 6.4 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M6
- Color
- Gray
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Brass, nickel-plated | Steel, galvanized and chrome-plated
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189341. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
