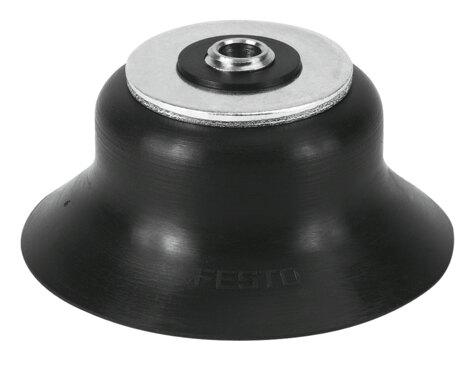

Reference imageConfirm configuration by manufacturer part number.
Festo
189350
Vacuum suction cup ESS-50-EN
Engineered by Festo, part number 189350 is an extra-deep round suction cup with a 50 mm diameter, a 3 mm nominal width, and a 7.9 cm³ volume that mounts via an M6 vacuum connection in any position. Operating at a nominal pressure of -70 kPa, this component delivers a holding force of 103.6 N and a lateral force of 115 N within an ambient temperature range of -10 °C to 70 °C. It features a 100 mm minimum workpiece radius, a CRC rating of 1, and VDMA24364-A1-L LABS conformity for atmospheric air operation based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to receive a quote for this 23.4 g industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189350
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189350.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 100 mm
- Nominal width
- 3 mm
- Suction cup diameter
- 50 mm
- Suction cup volume
- 7.9 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 4
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...70 °C
- Holding force at nominal operating pressure
- 103.6 N
- Lateral force at nominal operating pressure
- 115 N
- Product weight
- 23.4 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M6
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy, nickel-plated | Brass, nickel-plated | Steel, galvanized and chrome-plated
