189351

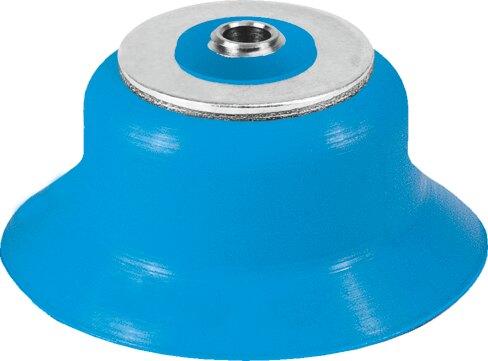

Name: Festo 189351 Vacuum suction cup ESS-50-EU
Brand: Festo

Vacuum suction cup ESS-50-EU

The Festo 189351 is an extra-deep round industrial component featuring a 50 mm suction cup diameter, a 3 mm nominal width, and a 7.9 cm³ suction cup volume designed for a minimum workpiece radius of 100 mm. Operating within a pressure range of -95 kPa to 0 kPa and utilizing atmospheric air based on ISO 8573-1:2010 [7:-:-], this 23.4 g assembly delivers a holding force of 103.6 N and a lateral force of 62 N at its nominal operating pressure of -70 kPa. It incorporates an M6 vacuum connection with an upward connection position, allows for any mounting position via the vacuum connection, and features a corrosion resistance class of 1 alongside VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189351
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189351.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Min. workpiece radius: 100 mm
Nominal width: 3 mm
Suction cup diameter: 50 mm
Suction cup volume: 7.9 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 4
Suction cup shape: Round, extra-deep
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Ambient temperature: -20 °C...60 °C
Holding force at nominal operating pressure: 103.6 N
Lateral force at nominal operating pressure: 62 N
Product weight: 23.4 g
Type of mounting: Via vacuum connection
Vacuum connection: M6
Color: Blue
Shore hardness: 60 +/-5
Material of screwed plug: Wrought aluminum alloy, nickel-plated | Brass, nickel-plated | Steel, galvanized and chrome-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 189351. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
