Festo
189355

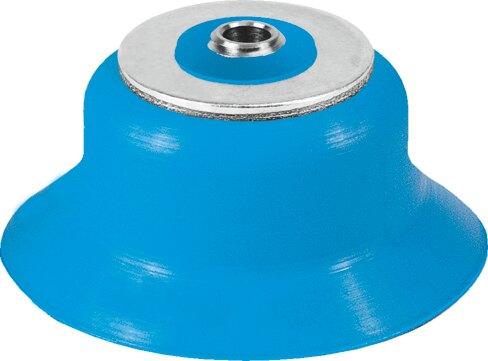

Vacuum suction cup ESS-60-EU
The Festo 189355 is a round, extra-deep industrial suction cup with a 60 mm diameter, a 19.77 cm³ volume, and a nominal width of 6 mm, engineered with an M10 vacuum connection located at the top for mounting via vacuum connection in any position. It operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 162.5 N alongside a lateral force of 134 N at a nominal operating pressure of -70 kPa. Featuring a product weight of 48 g, a minimum workpiece radius of 120 mm, a CRC rating of 1, and VDMA24364 Zone III LABS conformity, this component functions within an ambient temperature range of -20 °C to 60 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189355
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189355.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 120 mm
- Nominal width
- 6 mm
- Suction cup diameter
- 60 mm
- Suction cup volume
- 19.77 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 5
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 162.5 N
- Lateral force at nominal operating pressure
- 134 N
- Product weight
- 48 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M10
- Color
- Blue
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy, nickel-plated | Steel, nickel-plated | Steel, galvanized and chrome-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189355. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
