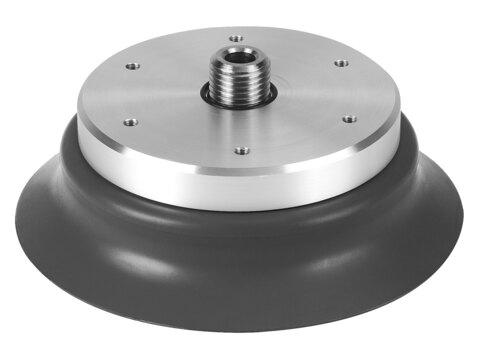

Reference imageConfirm configuration by manufacturer part number.
Festo
189358
Vacuum suction cup ESS-80-EN
The Festo 189358 is an industrial component featuring an extra-deep round suction cup with an 80 mm diameter, a nominal width of 6 mm, and a suction cup volume of 51.61 cm³. It operates at a nominal pressure of -70 kPa, delivering a holding force of 275 N and a lateral force of 216 N across a vacuum connection of M10. Weighing 141 g with a low corrosion resistance class of 1, this part accommodates an ambient temperature range of -10 °C to 70 °C and any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189358
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189358.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 160 mm
- Nominal width
- 6 mm
- Suction cup diameter
- 80 mm
- Suction cup volume
- 51.61 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 5
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...70 °C
- Holding force at nominal operating pressure
- 275 N
- Lateral force at nominal operating pressure
- 216 N
- Product weight
- 141 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M10
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- POM | Steel, nickel-plated | Steel, galvanized and chrome-plated
