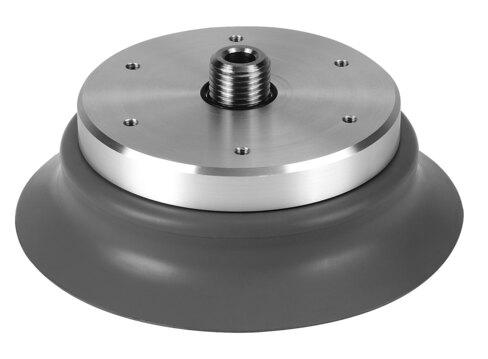

Name: Festo 189361 Vacuum suction cup ESS-80-EF
Brand: Festo

Vacuum suction cup ESS-80-EF

The Festo 189361 is an extra-deep round industrial component featuring an 80 mm suction cup diameter, a 6 mm nominal width, and a 51.61 cm³ suction cup volume designed for a minimum workpiece radius of 160 mm. Operating within a pressure range of -95 kPa to 0 kPa and a nominal operating pressure of -70 kPa, this unit delivers a holding force of 275 N and a lateral force of 148.5 N. Weighing 141 g with a CRC rating of 1 and an ambient temperature range of -10 °C to 200 °C, it mounts via an M10 vacuum connection positioned at the top in any mounting position using atmospheric air. Submit your exact part number, quantity, and application requirements to request a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189361
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189361.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Min. workpiece radius: 160 mm
Nominal width: 6 mm
Suction cup diameter: 80 mm
Suction cup volume: 51.61 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 5
Suction cup shape: Round, extra-deep
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...200 °C
Holding force at nominal operating pressure: 275 N
Lateral force at nominal operating pressure: 148.5 N
Product weight: 141 g
Type of mounting: Via vacuum connection
Vacuum connection: M10
Color: Gray
Shore hardness: 60 +/-5
Material of screwed plug: POM | Steel, nickel-plated | Steel, galvanized and chrome-plated
