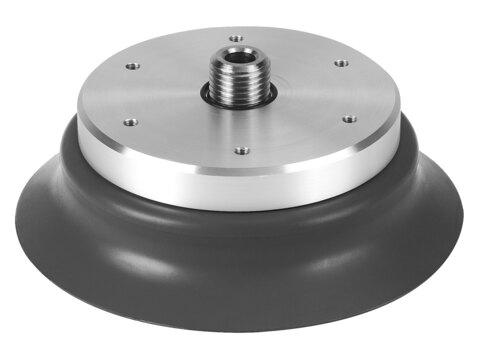

Reference imageConfirm configuration by manufacturer part number.
Festo
189362
Vacuum suction cup ESS-100-EN
Engineered with a round, extra-deep 100 mm suction cup and a nominal width of 6 mm, this Festo industrial component part number 189362 operates within a pressure range of -95 kPa to 0 kPa and weighs 228 g. The unit delivers a holding force of 440.8 N and a lateral force of 351 N at a nominal operating pressure of -70 kPa, featuring an M10 vacuum connection pointing upward. It functions across an ambient temperature range of -10 °C to 70 °C while accommodating any mounting position via its vacuum connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189362
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189362.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 200 mm
- Nominal width
- 6 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 84.66 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 5
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...70 °C
- Holding force at nominal operating pressure
- 440.8 N
- Lateral force at nominal operating pressure
- 351 N
- Product weight
- 228 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M10
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- POM | Steel, nickel-plated | Steel, galvanized and chrome-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189362. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
