189383

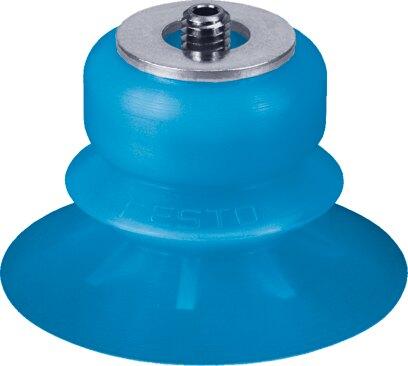

Name: Festo 189383 Vacuum suction cup ESS-30-BU
Brand: Festo

Vacuum suction cup ESS-30-BU

Engineered by Festo, part number 189383 is a round 1.5-fold protective bellows suction cup with a 30 mm diameter, 3 mm nominal width, and 8 mm height compensation, weighing 9.9 g. It operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 26.2 N and lateral force of 21.5 N at a nominal operating pressure of -70 kPa. Featuring an upward connection position and mounting via the vacuum connection in any position, this component handles atmospheric air according to ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189383
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189383.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 8 mm
Min. workpiece radius: 80 mm
Nominal width: 3 mm
Suction cup diameter: 30 mm
Suction cup volume: 4.07 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 4
Suction cup shape: round protective bellows 1.5-fold
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Ambient temperature: -20 °C...60 °C
Holding force at nominal operating pressure: 26.2 N
Lateral force at nominal operating pressure: 21.5 N
Product weight: 9.9 g
Type of mounting: Via vacuum connection
Vacuum connection: M6
Color: Blue
Shore hardness: 60 +/-5
Material of screwed plug: Brass, nickel-plated | Steel, galvanized and chrome-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 189383. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
