189387

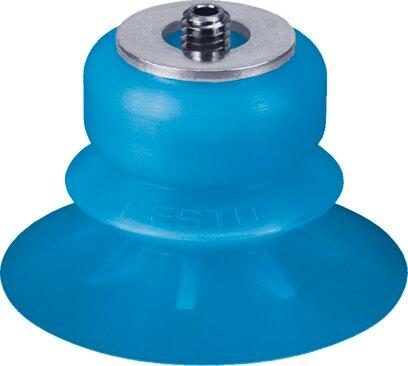

Name: Festo 189387 Vacuum suction cup ESS-40-BU
Brand: Festo

Vacuum suction cup ESS-40-BU

The Festo 189387 is a round 40 mm protective bellows 1.5-fold industrial component featuring a 9.5 mm suction cup height compensation, a 3 mm nominal width, and an 8.87 cm³ suction cup volume with an upward connection position. It operates within a pressure range of -95 kPa to 0 kPa, delivering a holding force of 52.3 N and a lateral force of 33 N at a nominal operating pressure of -70 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Featuring a product weight of 18.7 g, a corrosion resistance class of 1, and VDMA24364 Zone III LABS conformity, this unit mounts via vacuum connection in any position for ambient temperatures from -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189387
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189387.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 9.5 mm
Min. workpiece radius: 90 mm
Nominal width: 3 mm
Suction cup diameter: 40 mm
Suction cup volume: 8.87 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 4
Suction cup shape: round protective bellows 1.5-fold
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Ambient temperature: -20 °C...60 °C
Holding force at nominal operating pressure: 52.3 N
Lateral force at nominal operating pressure: 33 N
Product weight: 18.7 g
Type of mounting: Via vacuum connection
Vacuum connection: M6
Color: Blue
Shore hardness: 60 +/-5
Material of screwed plug: Wrought aluminum alloy, nickel-plated | Brass, nickel-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 189387. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
